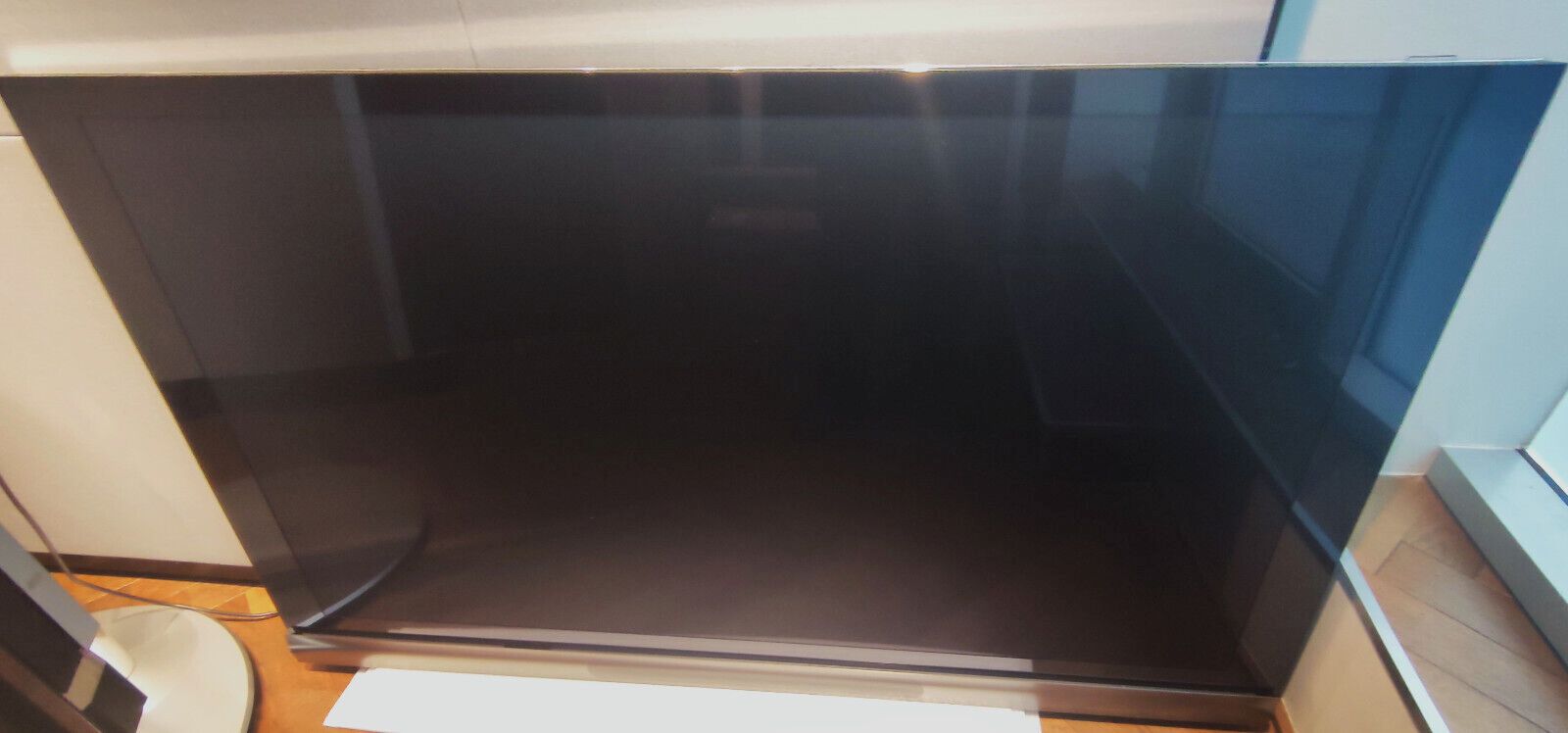

B&O Beovision 12-65, 65" Plasma TV , BeoSystem 4, 3D Technologie

B&O Beovision 12-65, 65" Plasama, BeoSystem 4, 4 3D Brillen, Beoremote One IR, Wandhalter
alle mitgelieferten Kabel, Anschluss-Bedienungsanleitung
technisch und optisch in einwandfreiem Zustand
letzte SW von B&O eingespierlt worden
Plasma Panel ist von Panasonic mit NEO Technologie ( Profi-Panel )

Panel Maße:
161x96,4x7,2 cm/ gewicht 60 KG
eingebauter Centerspeaker mit 5 lautsprechern,5 Verstärkern,Gesamtleistung 365 Watt

BeoSystem 4 mit alu Front und schwarzem Gehäuse
Maße: 44x9,1x29 cm / Gewicht 6,5 KG

Folgende Anschlüsse laut B&O Seite:
SOUND INPUT FORMATS

HDMI: PCM, multichannel PCM
SPDIF: Stereo PCM, Dolby Digital and DTS Digital Surround
DIGITAL SOUND DECODING CAPABILITIES

Multichannel PCM, Dolby Digital, Dolby Digital Plus 7.1, DTS Digital Surround, HE-AAC v1 and v2, LC-AAC, mp3, WMA, WMA lossless, FLAC
Up- & down-mixing: Bang & Olufsen True Image, downmix, 1:1
ROOM ADAPTATION

Automatic Picture Control
360 degree light measurement (BeoVision 12-65)
Anschlüsse:
CONNECTIONS


IR CONTROL OUTPUTS (PUC)

6 x (3 x RJ45 two outputs in each)
ANALOGUE VIDEO CONNECTIONS

1 x mini AV input (RGB FB or CVBS and one-way AVL)
PAL, SECAM, NTSC
USB

1x USB connector
5V DC/500 mA
USB HDD, USB key
Media player (HomeMedia): Picture, music, movies
Software: Software update, Peripheral Unit Controller (PUC) table download"
ETHERNET

1 x Ethernet RJ45 10/100 Mbit/s
Functions:
Media player (HomeMedia) allowing playback of picture, music and movies from NAS via UPnP, HbbTV, Software update, PUC table download allowing you to controlling a set-top box with the Bang & Olufsen remote control
DIGITAL VIDEO CONNECTIONS

5 x HDMI free configurable
DIGITAL SOUND CONNECTIONS

1 x RCA SPDIF, free configurable
LOUDSPEAKER OUTPUTS

6 x RJ45 Power Link, allowing up to 12 BeoLab speakers
MOTORISED STAND CONNECTION

1 x micro fit 4 pin
FEATURES


BEOLINK

Network Link
NETWORK LINK OPTIONS

V.OPT 0,1, 2 and 4
AUDIO DISTRIBUTION

Between Network Link products possible.
(Requires BeoLink Converter NL/ML to Master Link products)
PERIPHERAL UNIT CONTROLLER

Integrated Peripheral Unit/Set-top Box
Controller:
Controlling 6 units

Display Technologie:
DISPLAY


SCREEN TYPE

65" 16:9 Plasma display panel
RESOLUTION

1,920 x 1,080 pixels (Full HD)
3D FUNCTION

Requires active shutter glasses
REFRESH RATE

600 Hz Sub-field Drive
LUMINANCE OF WHITE (CENTRE OF SCREEN)

230 cd/m2
CONTRAST RATIO (CENTRE OF SCREEN)

5,000,000:1


PICTURE OPTIMISATION

VisionClear
ROOM ADAPTATION

Automatic Picture Control
COLOUR CALIBRATION

Automatic Colour Management (calibration runs every 100 hours)
Direkte Anschlüsse am Panel:
PLASMA CONNECTION

Picture:
1 x HDMI
Control and Automatic Colour Management:
1x RS 232C (RJ45)
IR and Automatic Picture Control:
1 x RJ45
Sound (centre channel):
1 x Power Link (RJ45)
