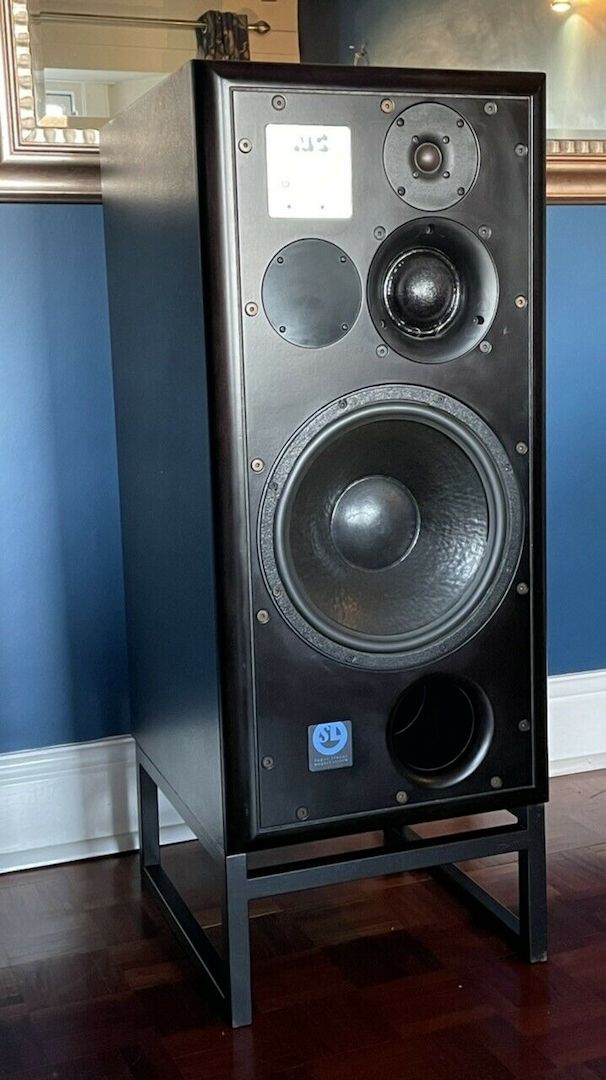

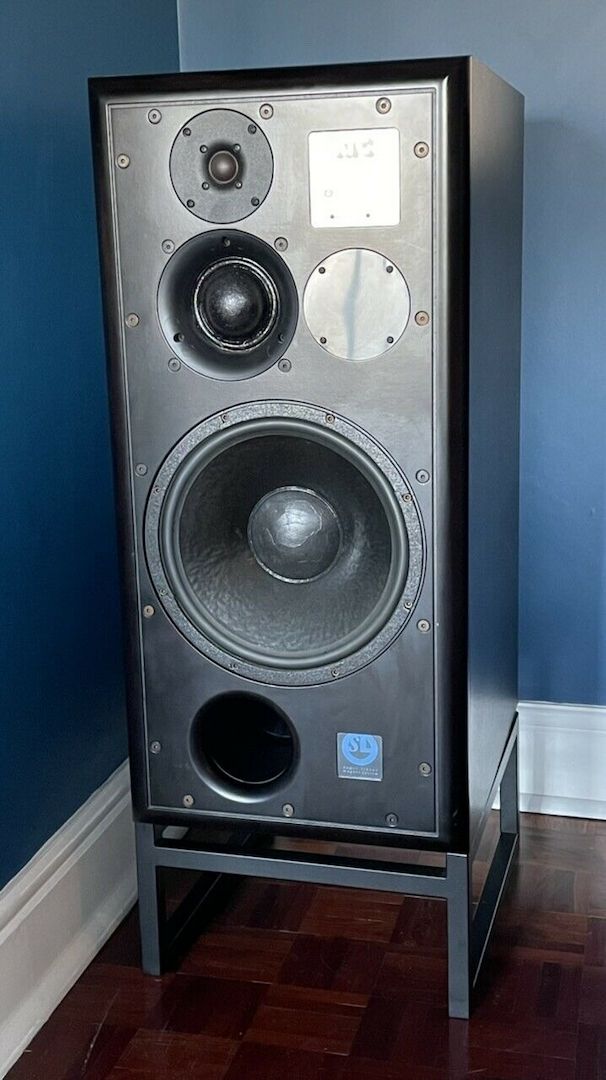

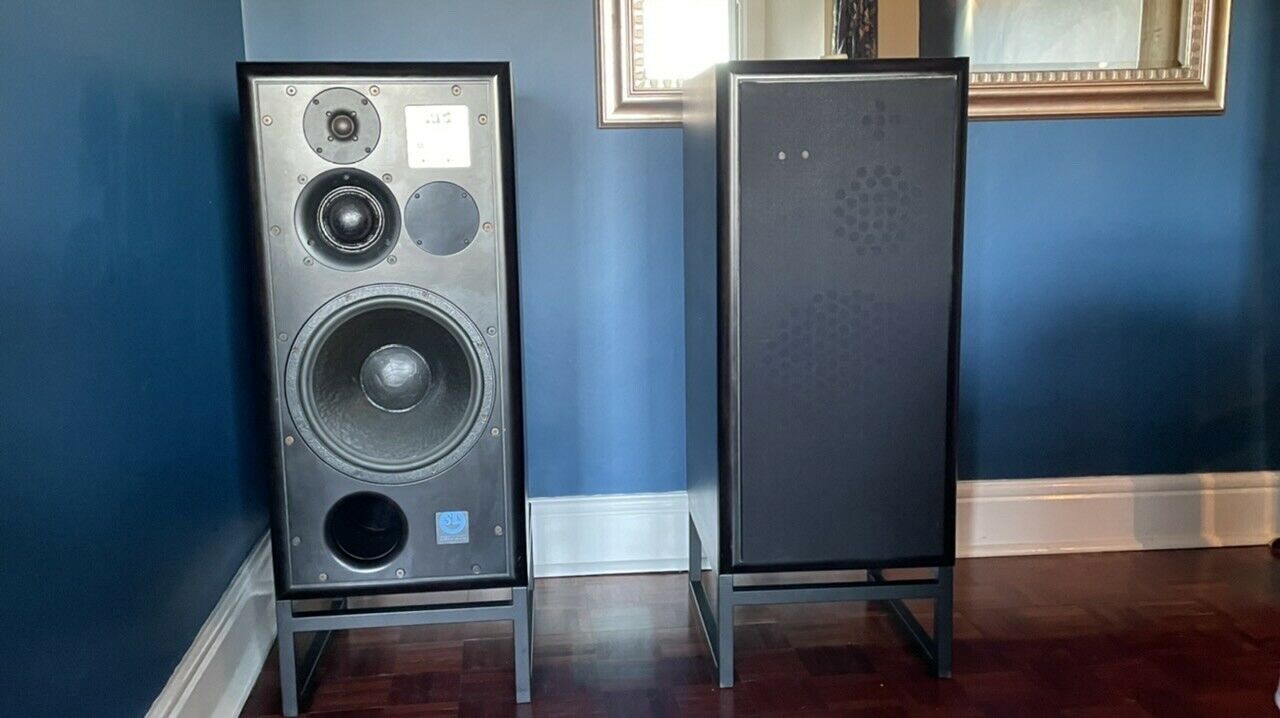

ATC SCM 100ASL Pro
3.800,00 €
60327
13.08.2023 4647
Details
Art
Audio & Hifi
Anzeigennr.
280990
Versand
Abholung
Verkauf
Privat
Beschreibung
Drivers: HF 1″/25mm, Mid 3″/75mm, LF 12″/314mm
Amplitude Linearity (±2dB): 65Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 32Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 832 x 398 x 581mm (32.8˝ x 15.7˝ x 22.9˝) Depth with amplifier at rear adds 3˝
Weight: 65kg / 143lbs (each!)
Amplitude Linearity (±2dB): 65Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 32Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 832 x 398 x 581mm (32.8˝ x 15.7˝ x 22.9˝) Depth with amplifier at rear adds 3˝
Weight: 65kg / 143lbs (each!)
