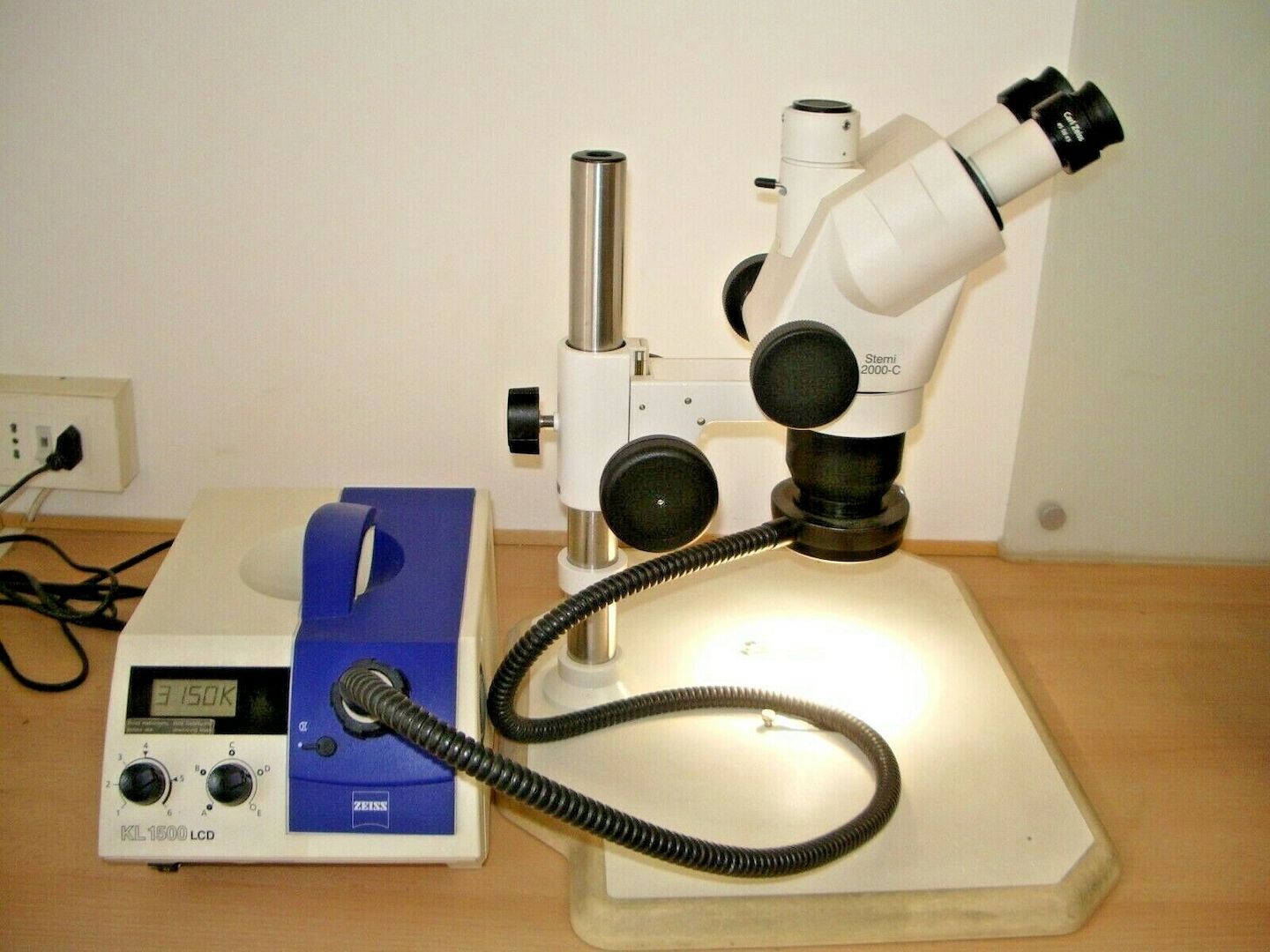

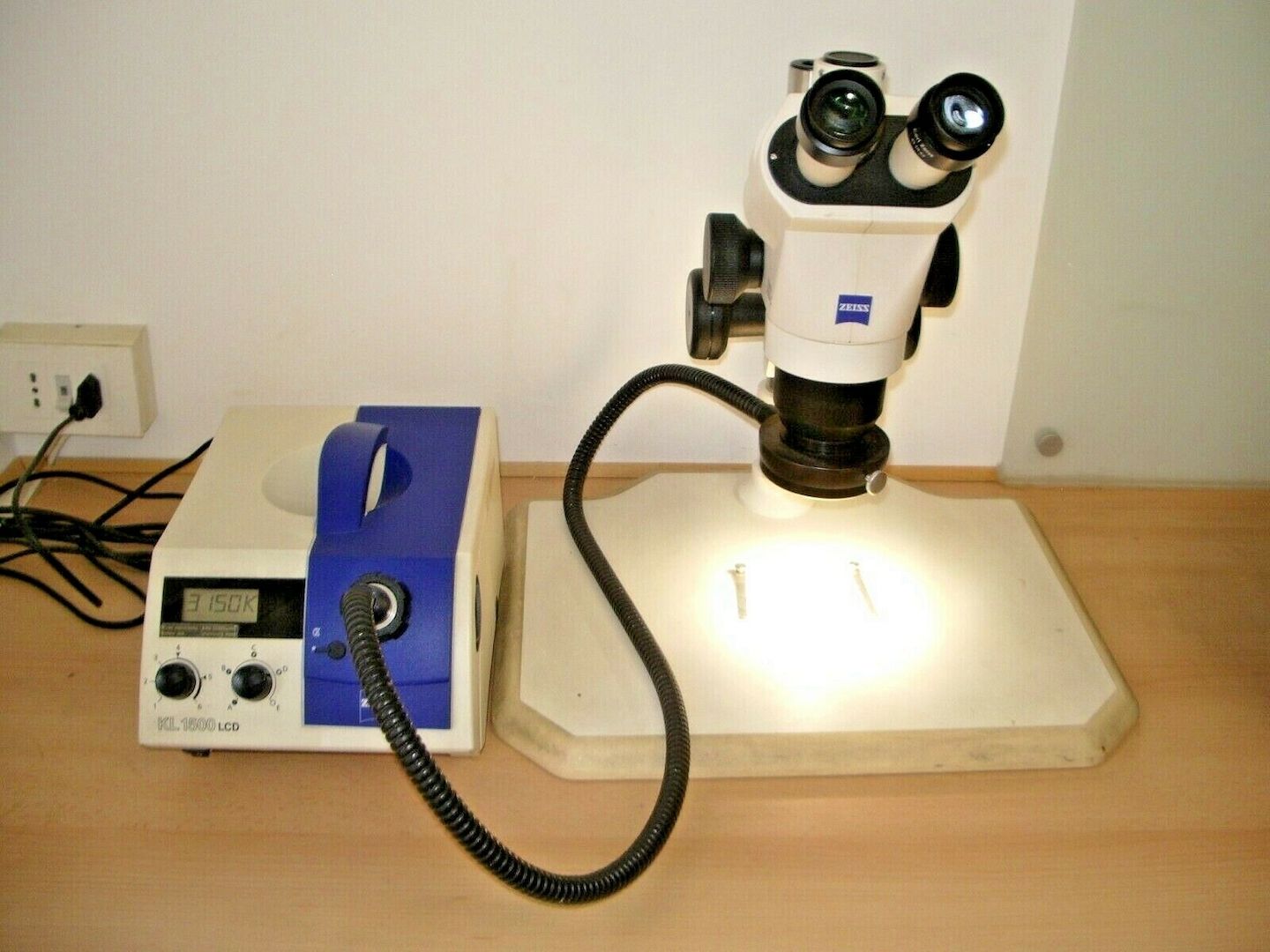

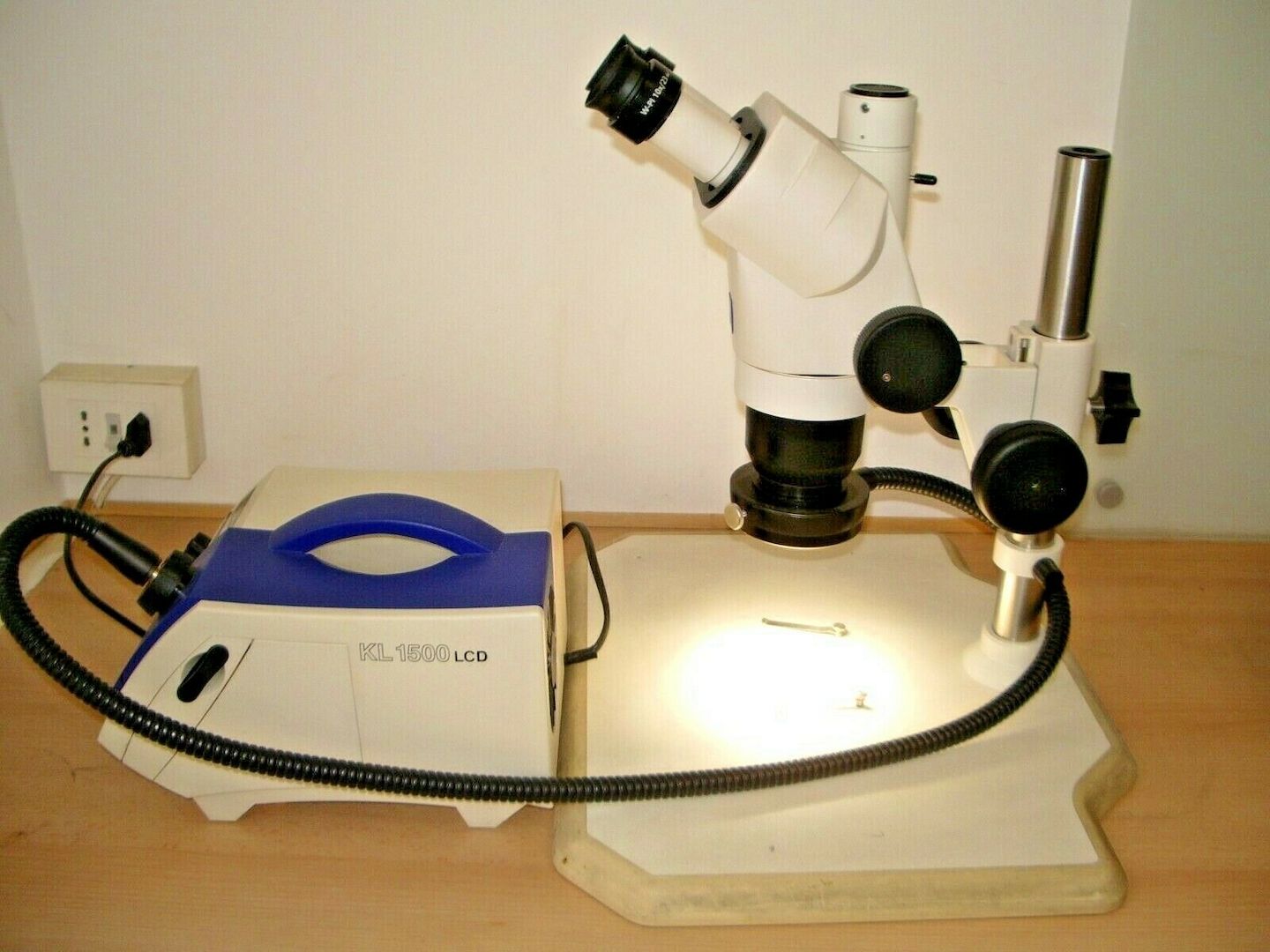

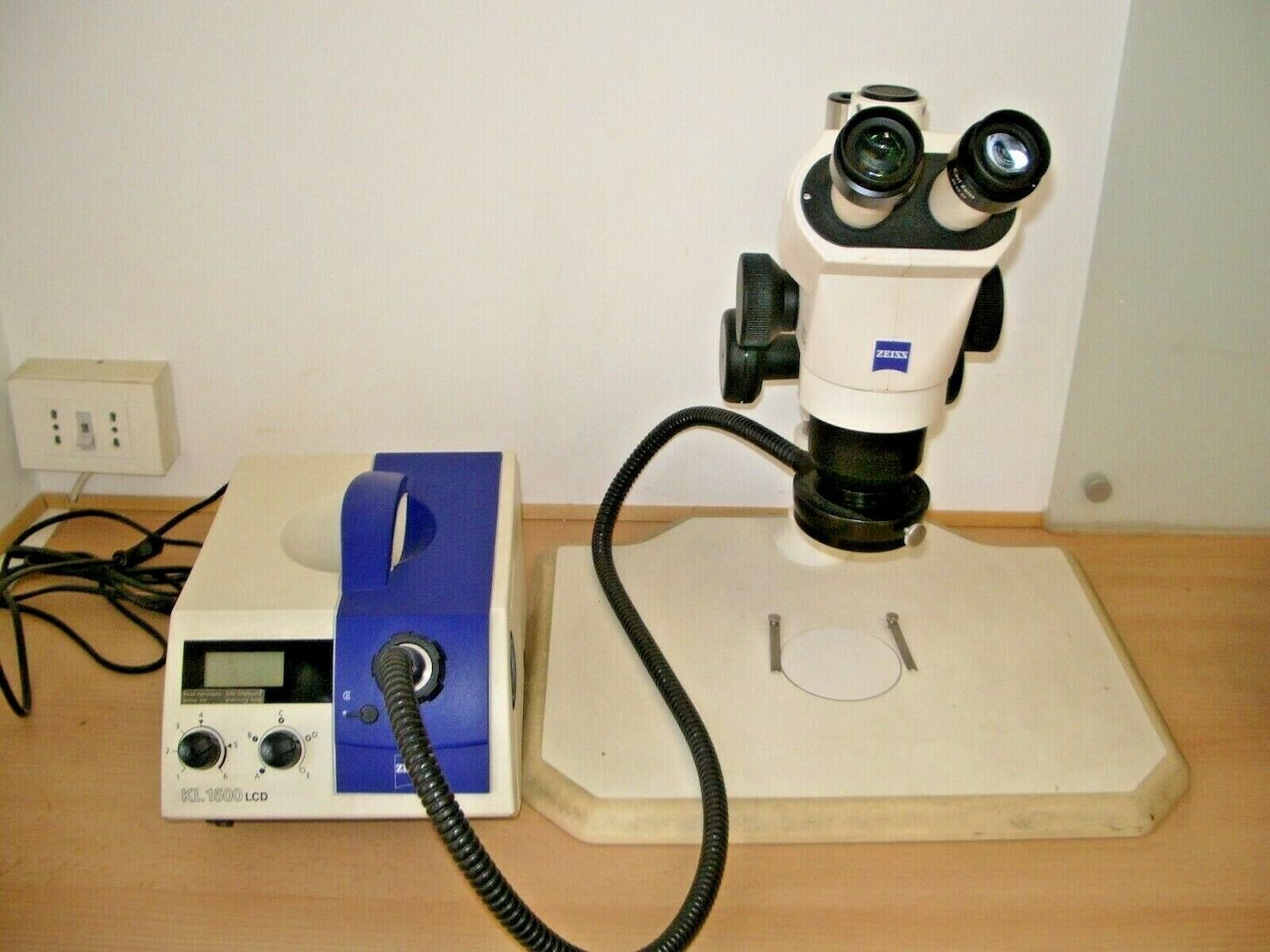

Stereomikroskop Carl Zeiss Stemi 2000-C mit KL 1500 LCD,Mikroskop,Kavo,SAM,Panad

Stereomikroskop Stemi 2000-c von Zeiss

Stemi 2000 --
Superior through
Zeiss Perfection
Stemi 2000 stereomicroscopes meet your expectations in two respects:
They offer the cost advantage of the Greenough
design, while boasting surprising performance
features.
The ultimate in 3D imaging
Thanks to their excellent optics, Stemi 2000 stereomicroscopes provide brilliant, sharp, distortion-free
and highly resolved images – even at the important
low magnifications.
Spectacular zoom factor of 7.7
If you are keen on minute structures, you will enjoy
the 7.7:1 zoom range. Zoom in on details, either
continuously or by click stops.
The commanding overview
The wide field of view already offered by the basic
configuration lets you overview an object area
greater than 35 mm in diameter.
The 0.3x supplementary lens expands this to 118 mm.
A Stemi 2000 triplet
Stemi 2000 comes in three body versions to choose
from, depending on your requirements:
• Stemi 2000 for stereoscopic observation only
• Stemi 2000C with photo- or videocamera port
and 100/100% beam switch
• Stemi 2000CS with photo- or videocamera port
and fixed 50/50% beamsplitter
Modular and flexible
The modular construction of the Stemi 2000
stereomicroscopes with their sensibly designed
interfaces permits a broad spectrum of uses.
Select from stands, mounting brackets and stages
to configure exactly the stereomicroscope you
require.
Light and light are not the same
Allowing epi-, transmitted and mixed illumination
techniques in bright- or darkfield, the Stemi 2000
system includes various fiber-optic illuminators
and cold-light sources of different wattages to suit
different applications.
Inspecting and archiving
The Stemi 2000C and Stemi 2000CS models can
be connected with the AxioCam MRc5 digital
microscope camera or commercial digital photoor videocameras. The Stemi 2000CS with its builtin beamsplitter allows you to do observation and
documentation simultaneously.
Stemi 2000
Stereomikroskope
Mit eingebauter Zeiss-Exzellenz.
Carl Zeiss Stemi 2000 Stereomikroskope sind
unbestritten zu den Besten ihrer Klasse.
Ihre Exzellenz in Kontrast, Tiefenschärfe und
Auflösungsvermögen macht sie zur Nummer eins
Wahl für die Inspektion dreidimensionaler Objekte
in Natur und Technik, sowie in Exemplaren
Vorbereitung auf Forschung und Lehre.

Zusatzlinse Okular
Faktor Frei WPL 10x/23 Br. foc WPL 16x/16 Br. Brennweite W 25x/10 Brennweite
Arbeiten
Entfernung (mm) Vergrößerung Objektfeld Vergrößerung Objektfeld Vergrößerung Objektfeld (mm) (mm) (mm)
0,3x 285 1,95x … 15,0x 118,0 …15,3 3,1x … 24,0x 82,1 …10,7 4,9x … 37,5x 51,3 … 6,7
0,3x …0,5x 234 … 91 1,95x … 25,0x 118,0 … 9,2 3,1x … 40,0x 82,1 … 6,4 4,9x … 68,8x 51,3 … 4,0
0,4x 210 2,6 x … 20,0x 88,5 …11,5 4,2x … 32,0x 61,5 … 8,0 6,5x … 50,0x 38,5 … 5,0
0,63x 130 4,1 x … 31,5x 56,2 … 7,3 6,6x … 50,4x 39,1 … 5,1 10,2x … 78,8x 24,4 … 3,2
keine 92 6,5 x … 50,0x 35,4 … 4,6 10,4x … 80,0x 24,6 … 3,2 16,3x …125,0x 15,4 … 2,0
1,25x 60 8,1 x … 62,5x 28,3 … 3,7 13,0x …100,0x 19,7 … 2,6 20,3x …156,3x 12,3 … 1,6
1,6x 48 10,4x … 80,0x 22,1 … 2,9 16,6x …128,0x 15,4 … 2,0 26,0x …200,0x 9,6 … 1,3
2,0x 31 13,0x …100,0x 17,7 … 2,3 20,8x …160,0x 12,3 … 1,6 32,5x …250,0x 7,7 … 1,0

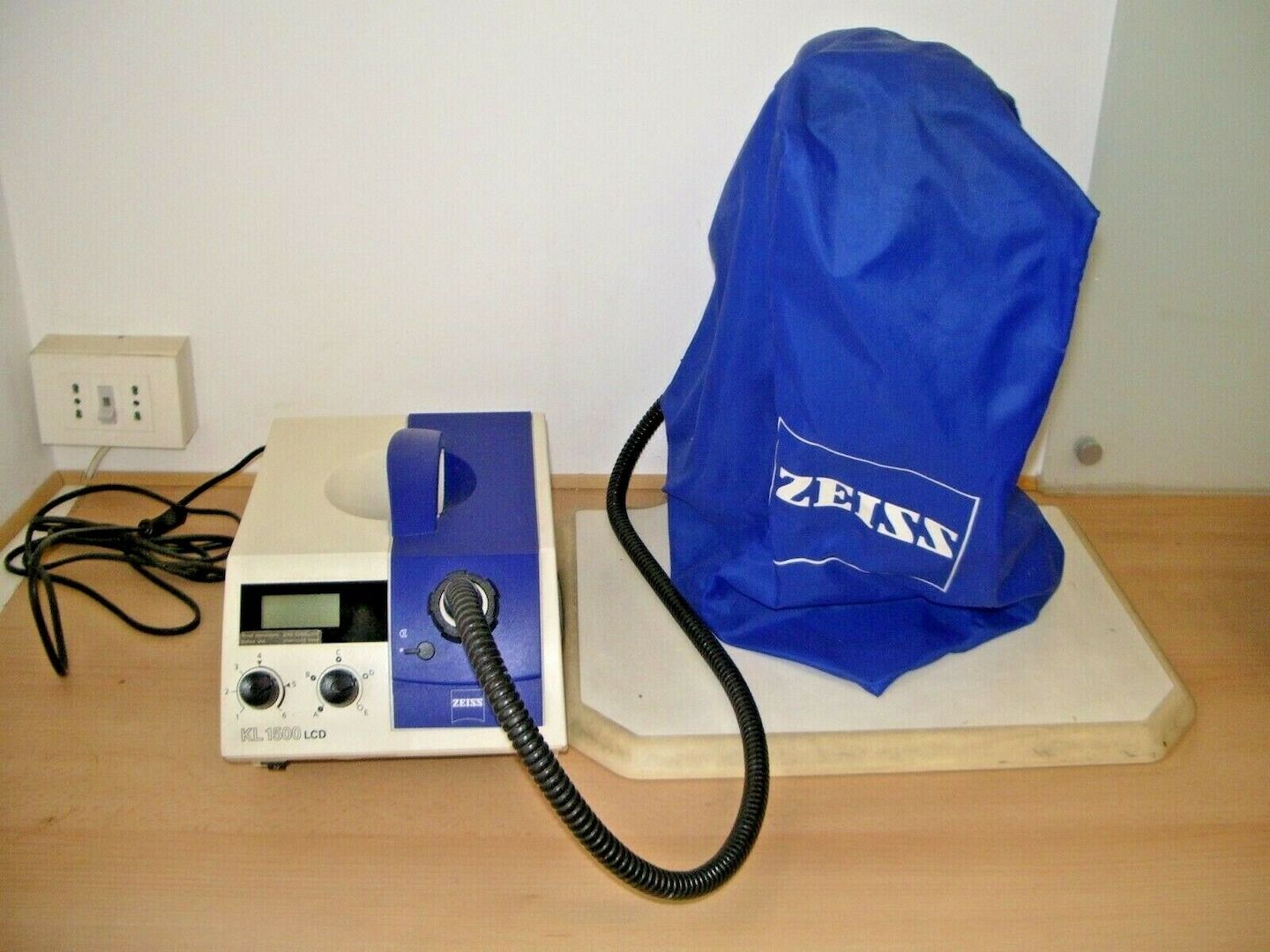

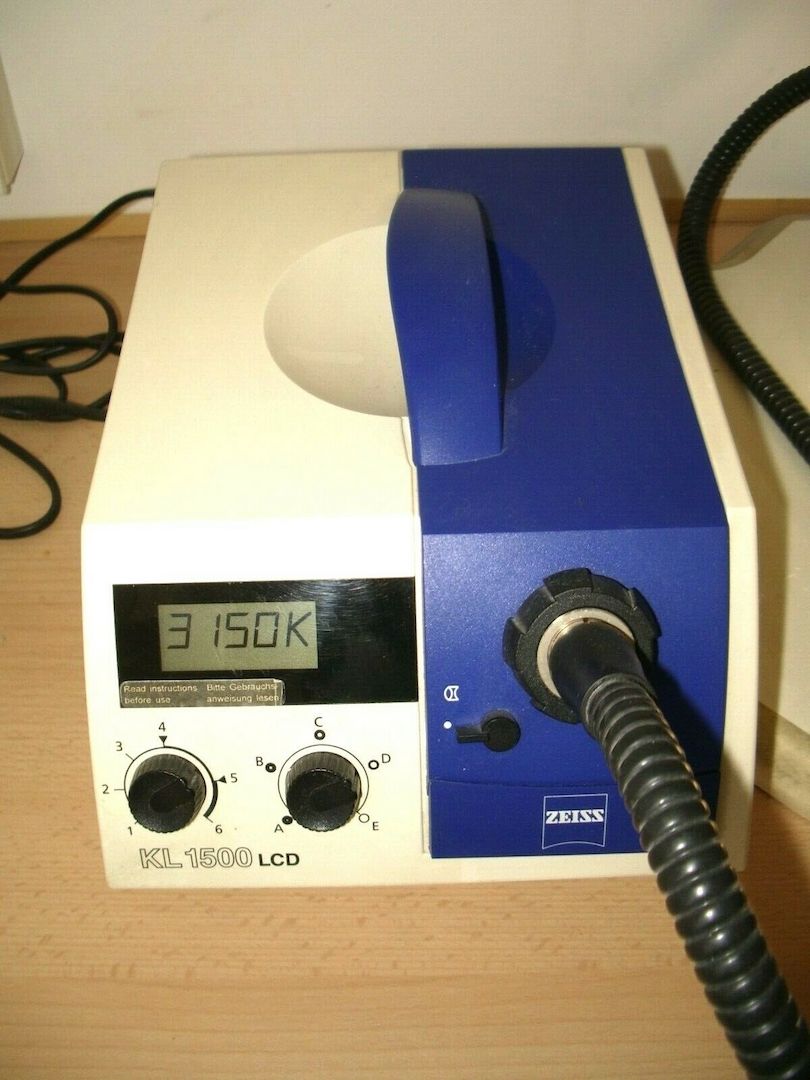

ZEISS- SCHOTT - KL1500 LCD

1 flexibler Schott-Lichtleiter, 1 Arm, 1000mm, ca. Ø6,0mm

4 Stück Osram HLX 64634 150W 15V EFR GZ6.35 Halogenlampe Xenophot Projektorlampe.
